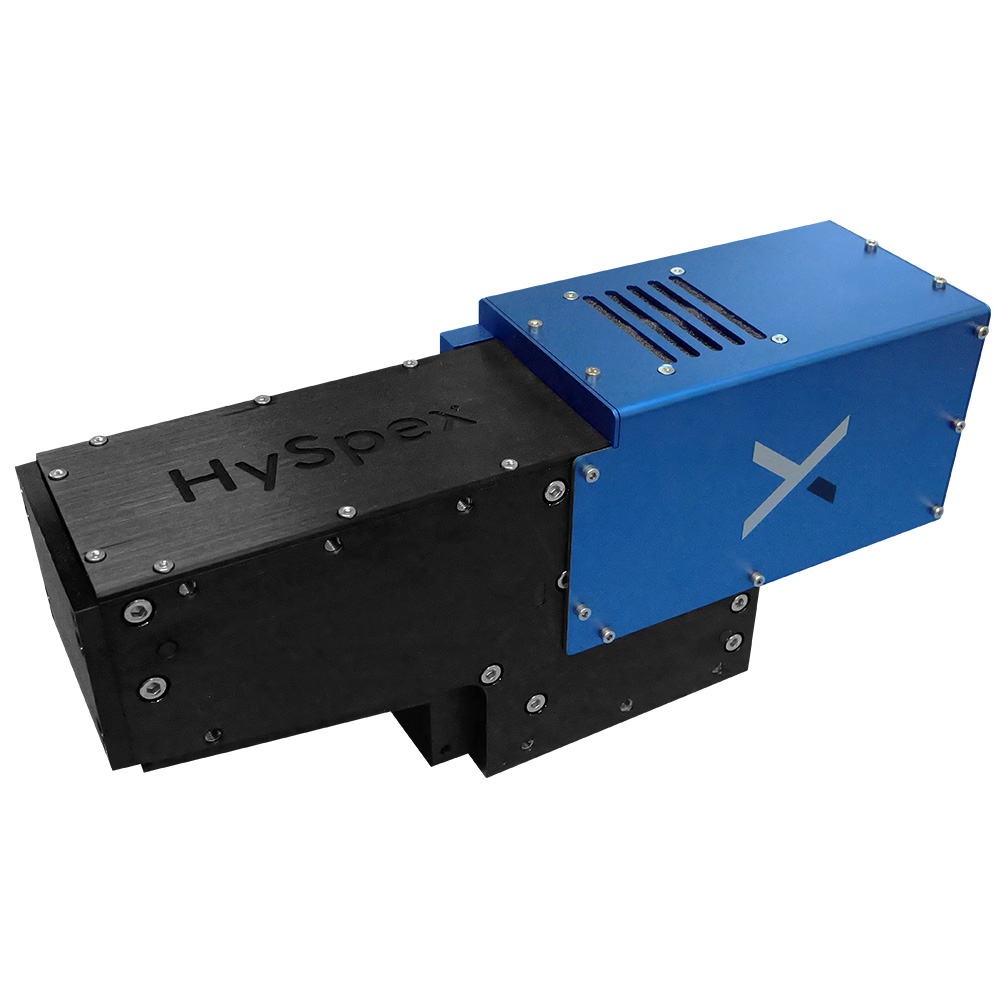

HySpex VNIR-3000 N
HySpex VNIR-3000 N is developed for field, laboratory, and airborne applications.
HySpex VNIR-3000 N utilizes the same spectrograph as the other classical HySpex VNIR models. With a pixel size of 3.45μm, compared to 6. 5μm for VNIR-1800, HySpex VNIR-3000 N will have less than 1.6 pixels per FWHM of the PSF spatially and less than 1.8 bands spectrally, ensuring that narrow band features will be resolved equally for all cameras. With 3000 spatial pixels, 300 bands and a noise floor of 2.4e-, HySpex VNIR-3000N will provide outstanding SNR levels in dark environments.
The camera is offered with a USB connection, allowing camera operation from any computer and reducing the cost of supplementing equipment. To visualize that the camera has a wider PSF per pixel and band relative to our normal extremely sharp cameras, we have added an N for Nyquist to the model name.
HySpex Classic VNIR-3000 N configuration
Laboratory setup
For lab and field use, a scanning stage is needed to scan the cameras and build the hyperspectral data cube of the scene. A user-friendly table-top lab setup with translation stage, VNIR-SWIR light sources, and close-up lenses can also be supplied for scanning of samples of varying sizes. The scanning speed is automatically controlled by the data acquisition unit, based on the selected lens option. The lab rack includes a camera adjustment platform, to facilitate camera focus adjustment when using different close-up lenses.
Accessories
Field setup
For field operations, HySpex supplies a range of high precision rotation stages tailored to fit the specific operational scenario.
Long-life Li-ion battery powered solutions are available for increased portability.
To ensure stable and reliable acquisitions in challenging field conditions, rugged and portable tripods are supplied. HySpex supplies a variety of tripods with pan/tilt heads that will accommodate the camera payload and rotation stage used.
Airborne Applications
High resolution and high speed, combined with low weight and power consumption, make NEO’s HySpex cameras very well suited for airborne data acquisition.
Position- and attitude logging systems (IMU/GPS) from leading manufacturers can be integrated and supplied with the cameras. Alternatively, the HySpex systems can be interfaced with the customer’s existing navigational hardware.
For airborne systems, NEO supplies dedicated software and a touch screen for ease of operation.
Main specifications
| Specification | VNIR-3000N |
|---|---|
| Spectral range | 400–1000 nm |
| Spectral sampling | 2.0 nm |
| Spatial pixels | 3000 |
| Spectral channels | 300 |
| Field of view | 16.0° |
| Pixel FOV | 0.096 / 0.32 mrad |
| Bit resolution (raw data) | 12 bit |
| Noise floor | 2.37 e⁻ |
| Dynamic range | 11000 |
| Peak SNR | >170 |
| Max speed | 117 fps |
| Power consumption | 30 W |
| Dimensions (l–w–h) | 390 × 99 × 150 mm |
| Camera interface | GigE |
