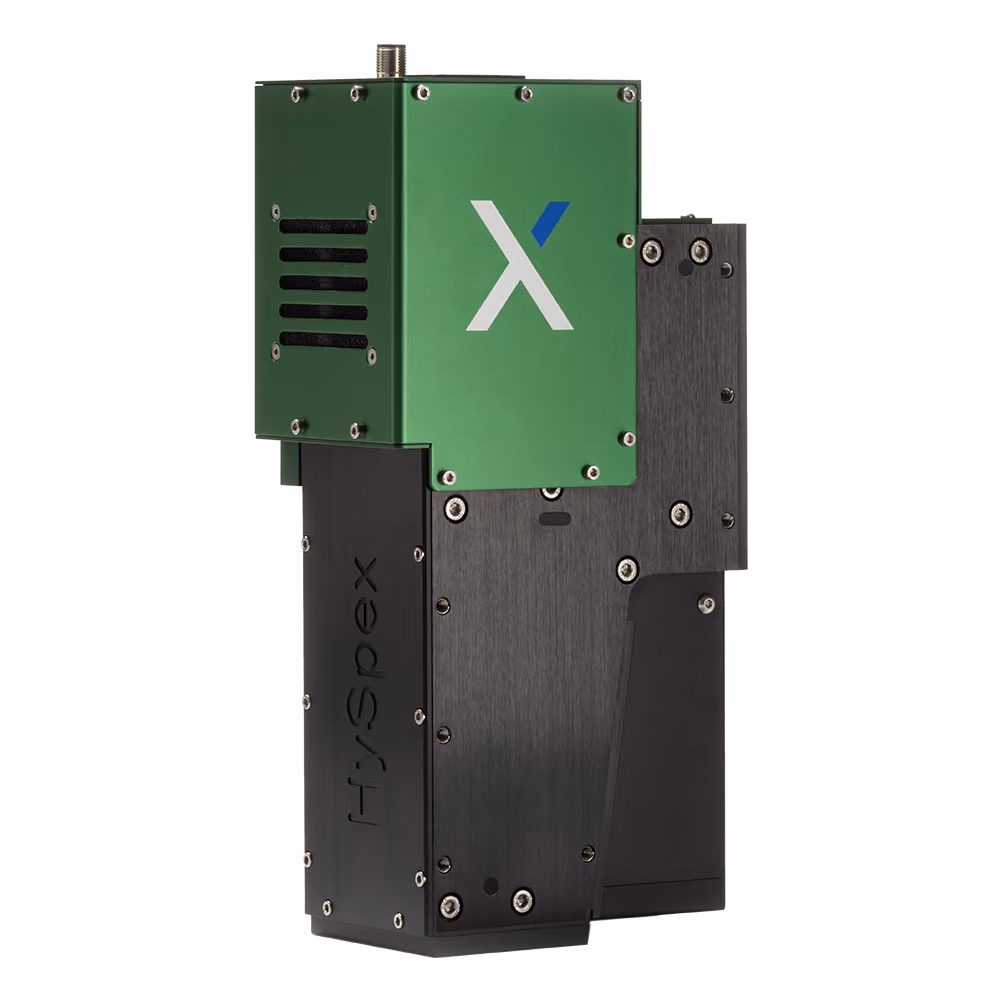

HySpex Baldur V-1024 N
Baldur V-1024 N covers the full VNIR spectral range from 400-1000nm and is configurable within one octave in the same range.
All Baldur cameras are Nyquist cameras giving a spectral resolution of 2 spectral bands while capturing 4 times as much light as the classic systems. To ensure that the most information per framerate is provided, the spectral resolution is kept very close to 2 bands. Additionally, the spatial resolution of Baldur V-1024 N is better than 1.7 pixels, yielding a very sharp camera.
HySpex Baldur V-1024 N configuration
Baldur for Industrial Applications
Designed to be fast, flexible, robust and repeatable, HySpex offers the Baldur line of industrial cameras.
Baldur benefits
- Flexibility: All Baldur cameras support multiple regions of interest (MOI).
- Trigger: All camera can be triggered internally, and all cameras support several kinds external triggering.
All cameras are operating in Integrate While Read (IWR) mode. - Speed: Maximized information per data rate of any hyperspectral camera. Speed scalable with reducing
the number of spectral channel read-out. - Reliability and traceability:
All cameras delivered with traceable calibration to NIST and PTB standards.
All cameras within the same wavelength range have the same center wavelengths.
Well-proven and robust design. - Light sensitivity: High speed acquisitions with light sensitivity 4 times higher than HySpex classic.
- SDK: All HySpex cameras (Baldur, Classic and Mjolnir) are delivered with a high-end SDK and library
that makes it simple to integrate the HySpex HW into any third-party software and hardware solution. - Fully integrated hardware and software solution
Main specifications
| Specification | |
|---|---|
| Spectral range | 410–780 / 493–945 / 408–996 nm |
| Spectral bands | 72 / 88 / 113 |
| Max. speed* | 1020 / 840 / 650 fps |
| Spectral sampling | 5.5 nm |
| Spectral FWHM | < 2 bands |
| Spatial FWHM | < 1.7 pixels |
| Spatial pixels | 1024 |
| Keystone | < 15% of a pixel |
| Smile | < 15% of a band |
| FOV | 16° / 40° |
| Bit resolution | 12 bit |
| Noise floor (native) | 11 e⁻ |
| Peak SNR | > 286 |
| Dynamic range | 2560 |
| ROI* | 8 independent ROIs |
| External trigger options | LVDS, 3.3V/5V TTL |
| Camera interface | Camera Link |
| Dimensions (l–w–h) | 316 × 105 × 153 mm |
* Reducing the number of spectral channels with ROI will proportionally increase the max framerate
Lens options
| Working distance | Field of View | Pixel size | Max speed (232 bands*) | Max speed (116 bands*) |
| 1.0 m | 16°/293 mm | 0.286 mm | 0.22 m/s | 0.44 m/s |
| 1.0 m | 40°/748 mm | 0.730 mm | 0.56 m/s | 1.12 m/s |
| 1.9 m | 40°/1331 mm | 1.300 mm | 1.00 m/s | 2.00 m/s |
* With square pixels. Reducing the number of spectral channels with ROI will proportionally increase the max framerate.
